Presentation Video - ONE-CARE® PRO Safety Needles

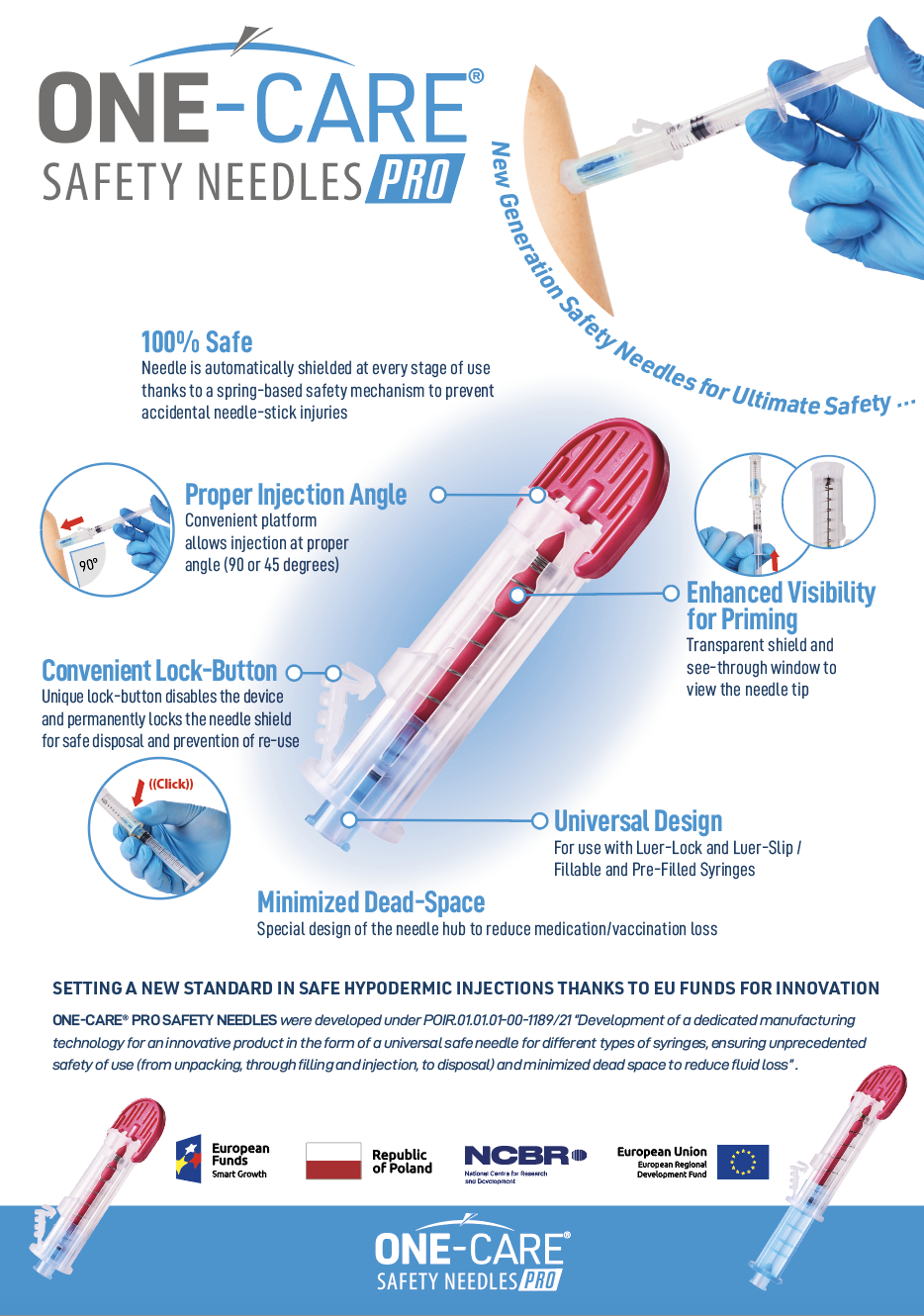

ONE-CARE® PRO Safety Needles
ONE-CARE® PRO Safety Needles
Safety Mechanism
Needle is automatically shielded at every stage of use thanks to a spring-based safety mechanism to prevent accidental needle-stick injuries
Minimized Dead-Space
Special design of the needle hub to reduce medication/vaccination loss
Universal Design
For use with Luer-Lock and Luer-Slip
/ Fillable and Pre-Filled Syringes
Convenient Lock-Button
Proper Injection Angle
Easy Priming
Unique lock-button disables the device and permanently locks the needle shield for safe disposal and prevention of re-use
Convenient platform allows injection at proper angle (90 or 45 degrees)
Transparent shield and see-through window to view the needle tip
Instructions For Use
1. Open the blister pack aseptically.
2. Attach the safety needle to the syringe securely by inserting the needle hub into (2a) the Luer-Slip syringe or turning it onto (2b) the Luer-Lock syringe.
3-4 While holding the needle shield in place other than the lock button, turn the protective cap accordingly to arrows on the cap and pull it straight out from the transparent shield.
5. Position the safety needle shield on the selected injection site at the desired angle* and press the syringe barrel to retract the shield so that the needle can penetrate the skin to its full length. *Depending on the type of application, position the shield platform at:
5a) 90-degree without skin pinching (IM – intra-muscular injection),
5b) 90-degree with skin pinching (SC – subcutaneous injection), or
5c) 45-degree with skin pinching (SC – subcutaneous injection).
6. Press the syringe plunger slowly and deliver the desired dose.
7. Remove from the injection site and immediately press the lock button until you hear “Click’’, which means that the device has been permanently disabled.
8. Dispose of the device into a sharp container as per your local facility’s regulations.
